PLC Control Decorative Inner Panel Roll Forming Standing Seam Metal Machine

Brand Name : Sussman

Model Number : SM-GT

Certification : CE,SGS,ISO

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 60 days after deposit

Packaging Details : 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.

Forming Stations : 25 roller stations

Shaft material : #45 steel with heat treatment

Raw material : PPGI/Galvanized Sheet

Power(w) : 7.5KW

Cutting blade material : cr12 with quenched treatment

Dimension : About 9500×800×1000mm

Contact Now

360 mm 0.4-0.8 mm Aluminum PPGI Decorative Wall Panel Roll Forming Machine With PLC Control

Technical Parameter

Item NO

Description

Offered specification
1.0 Roll forming machine
1.1 Rolling speed 10-12m/min
1.2 Rolling thickness 0.4-0.8mm
1.3 Raw material Galvanized steel coils or PPGI
1.4 Main motor 7.5kw
1.5 Hydraulic motor 5.5kw
1.6 dimension About 9500×800×1000(mm)
1.7 Roller stations About 25 rollers
1.8 Roller material 45#forge steel, coated with chrome
1.9 Shaft diameter Φ75mm,material is 45# forge steel
1.10 Transmission By chain 1 inch
1.11 Material of chain 45# forged steel with frequency quenching, 12A
1.12 Material of cutting Cr12Mov with quench HRC58-62°
1.13 Tolerance 6m+-0.5mm
1.14 Frame H type steel
1.15 Voltage 380v, 50hz, 3phases


Main Component

S.N

Equipment name

 Quantity
1.

5Tons passive un-coiler

 1 set
2.

Roll forming machine

 1 set
3.

Hydraulic cutting

 1 set
4.

Control system (including control box)

 1 set
5.

Out tables

 2 sets












Working Flow

Decoiler----Feeding with guide---Roll forming---Cutting---Run out tables

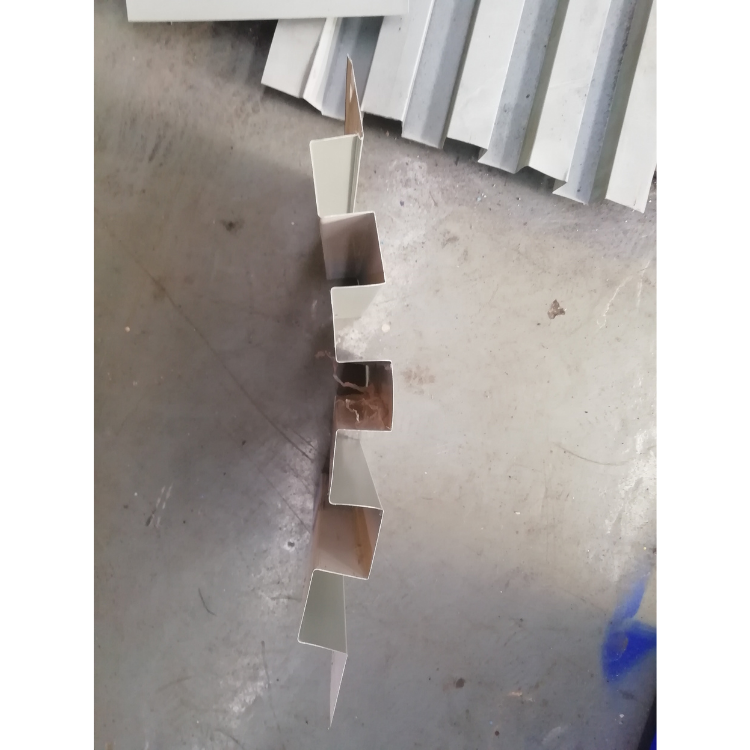

Profile drawing

PLC Control Decorative Inner Panel Roll Forming Standing Seam Metal Machine

PLC Control Decorative Inner Panel Roll Forming Standing Seam Metal Machine


Application

The finished product of wall panel is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc.

It has the advantage of beautiful, classical appearance and grace taste.

PLC Control Decorative Inner Panel Roll Forming Standing Seam Metal Machine

PLC Control Decorative Inner Panel Roll Forming Standing Seam Metal Machine
